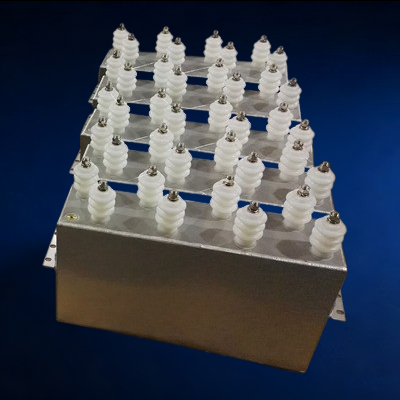

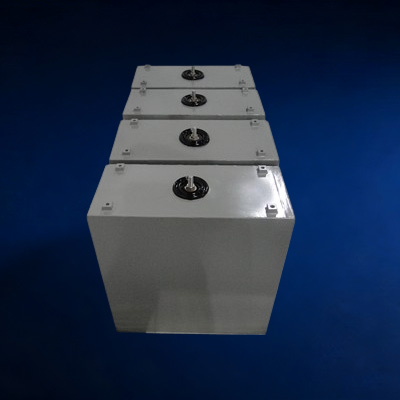

QDM2 - MZMJ series, 5.0- 25KV High Voltage Pulse Capacitor
Applicable scope and functions: for DC voltage 5.0-25KV cable thumper, lightning impulse test power supply.
Product Features:
• Special autoclaved metalized film, can withstand high du/dt,di/dt
• Low inductance (Ls), high peak current (Ipeak), and long design life (>5x105)
Conditions of use / technical parameters / Product standard:
| Temperature range: | -25℃~50℃ |
| Rated voltage UN: | ≤25KV |
| Rated capacitance CN: | ≤165uF |
| Maximum peak current: | ≤35KA |
| Design Life: | >1.0E+05(90% remaining capacitance) |
| Product standard: | IEC61071-1(1991), Or customized |
Product Specifications:
|
MZMJ UN—— CN |
|||||||
|
UN KV |
CN uF |
Ls nH |
Ipeak KA(20%Reversal) |
Life (90% remain) |
L mm |
W mm |
H mm |
|
5.0 |
110 |
＜80 |
25 |
＞1*106 |
343 |
165 |
260 |
|
165 |
＜80 |
35 |
＞1*106 |
343 |
165 |
370 |
|
|
10.0 |
28 |
＜100 |
15 |
＞1*106 |
343 |
165 |
260 |
|
41 |
＜100 |
22 |
＞1*106 |
343 |
165 |
370 |
|
|
15.0 |
18 |
＜100 |
15 |
＞1*106 |
343 |
210 |
260 |
|
28 |
＜100 |
22 |
＞1*106 |
343 |
210 |
370 |
|
|
20.0 |
7 |
＜150 |
7.5 |
＞5*105 |
343 |
165 |
260 |
|
10 |
＜150 |
11 |
＞5*105 |
343 |
165 |
370 |
|
|
25.0 |
5.5 |
＜150 |
7.5 |
＞5*105 |
343 |
165 |
260 |
|
8 |
＜150 |
11 |
＞5*105 |
343 |
165 |
370 |
|
