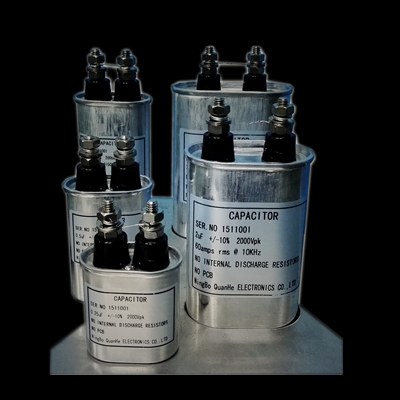

QS - SFM series, high power Thyristors (SCR) snubber capacitor

Applicable scope and functions: for SCR switch protection of intermediate DC voltage ≤2.7KV，0.15-8KHz/SCR induction heating power supply ,absorbing the surge voltage .

Product Features:

• All-film (Full foil) structure, NO PCB
• Can withstand hihg du/dt, di/dt

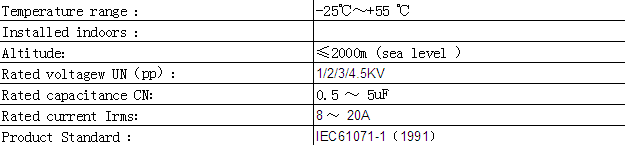

Conditions of use / technical parameters / Product standard:

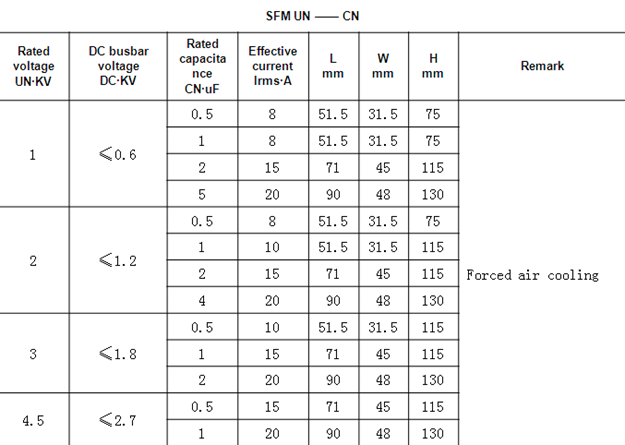

Product Specification：

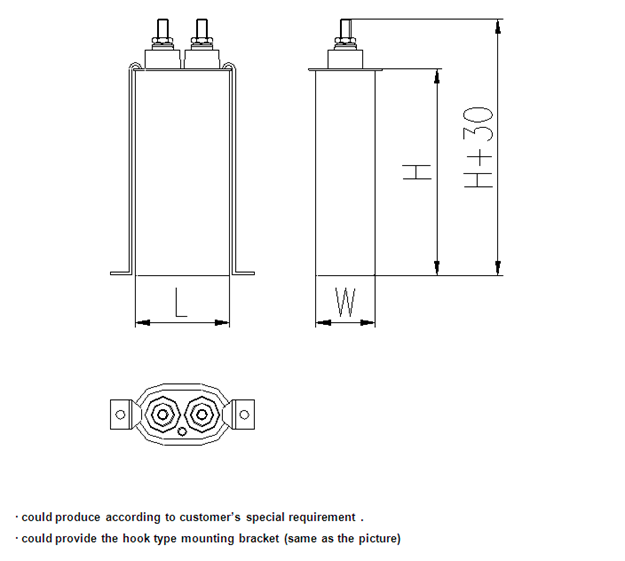

Product Drawings:
