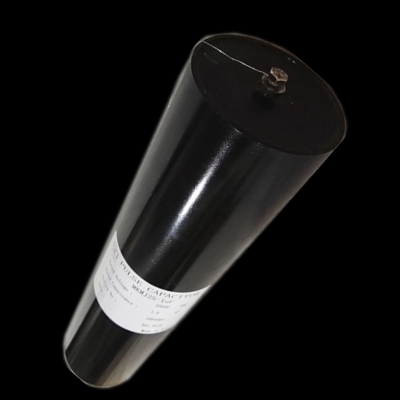

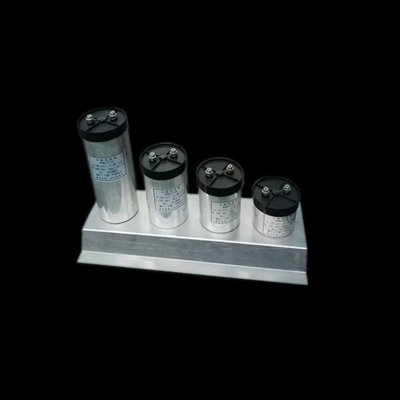

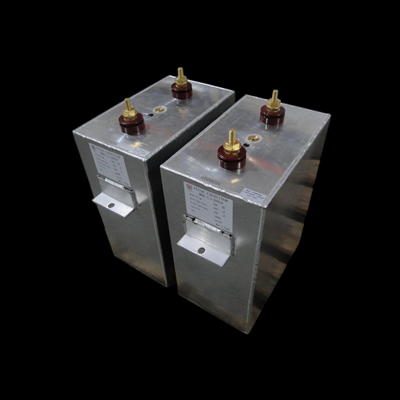

QDM1 - MKMJ/MZMJ series,  1.0-5.0KV Pulse Capacitor

Applicable scope and functions: for DC voltage 1.0-5.0KV, such as energy storage welding, magnetizing/demagnetizing pulse power supply.

Product Features:

• Special autoclaved metalized film, can withstand high du/dt,di/dt

• Low inductance (Ls), high peak current (Ipeak), and long design life (>1x106)

Conditions of use / technical parameters / Product standard:

Temperature range:	-25 ℃ ~ 50 ℃
Rated voltage UN:	≤5.0KV
Rated capacitance CN:	≤7500uF
Maximum peak current:	≤30KA
Design life:	> 1.0E + 6 (90% residual capacitance)
Product Standard:	IEC61071-1 (1991) Or customized

Product Specifications：

MKMJ/MZMJ UN —— CN
UN	CN	Ls	Ipeak	Life	Φ	L	W	H
KV	uF	nH	KA(20% Reversal)	(90% Residual)	mm	mm	mm	mm
1.1	450	＜40	2.5	＞1*106	85			120
	900	＜40	5	＞1*106	85			230
	5000	＜80	20	＞1*106		343	125	250
	7500	＜80	30	＞1*106		343	125	360
1.3	360	＜40	2.2	＞1*106	85			120
	720	＜40	4.4	＞1*106	85			230
	4000	＜80	20	＞1*106		343	125	250
	6000	＜80	30	＞1*106		343	125	360
1.6	250	＜40	1.8	＞1*106	85			120
	500	＜40	3.6	＞1*106	85			230
	2800	＜80	20	＞1*106		343	125	250
	4200	＜80	30	＞1*106		343	125	360
2	180	＜40	1.5	＞1*106	85			120
	360	＜40	3	＞1*106	85			230
	2000	＜80	18	＞1*106		343	125	250
	3000	＜80	27	＞1*106		343	125	360
2.2	130	＜40	1.3	＞1*106	85			120
	260	＜40	2.6	＞1*106	85			230
	1500	＜80	16	＞1*106		343	125	250
	2250	＜80	24	＞1*106		343	125	360
2.5	105	＜40	1.2	＞1*106	85			120
	210	＜40	2.4	＞1*106	85			230
	1200	＜80	15	＞1*106		343	125	250
	1800	＜80	22.5	＞1*106		343	125	360
2.8	85	＜40	1.1	＞1*106	85			120
	170	＜40	2.2	＞1*106	85			230
	1000	＜80	14	＞1*106		343	125	250
	1500	＜80	21	＞1*106		343	125	360
3	125	＜40	1.8	＞1*106	85			230
	700	＜80	11	＞1*106		343	125	250
	1050	＜80	17	＞1*106		343	125	360
3.5	90	＜40	1.6	＞1*106	85			230
	500	＜80	9	＞1*106		343	125	250
	750	＜80	14	＞1*106		343	125	360
4	65	＜40	1.4	＞1*106	85			230
	375	＜80	8	＞1*106		343	125	250
	560	＜80	12	＞1*106		343	125	360
4.5	55	＜40	1.2	＞1*106	85			230
	300	＜80	7.5	＞1*106		343	125	250
	450	＜80	11	＞1*106		343	125	360
5	40	＜40	1.1	＞1*106	85			230
	250	＜80	7	＞1*106		343	125	250
	375	＜80	10	＞1*106		343	125	360

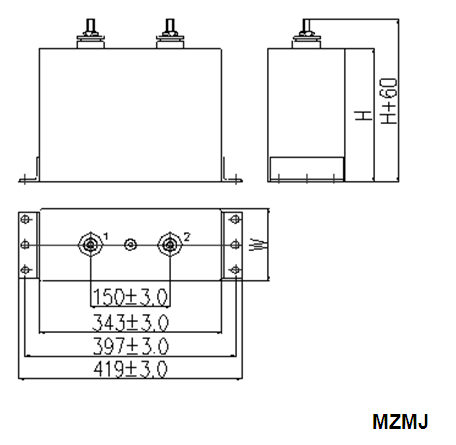

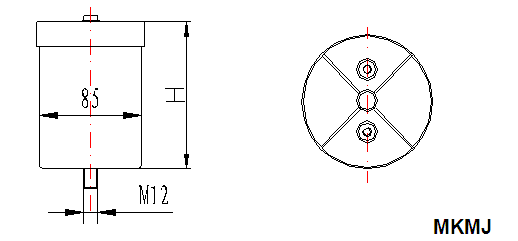

Product Drawings:
